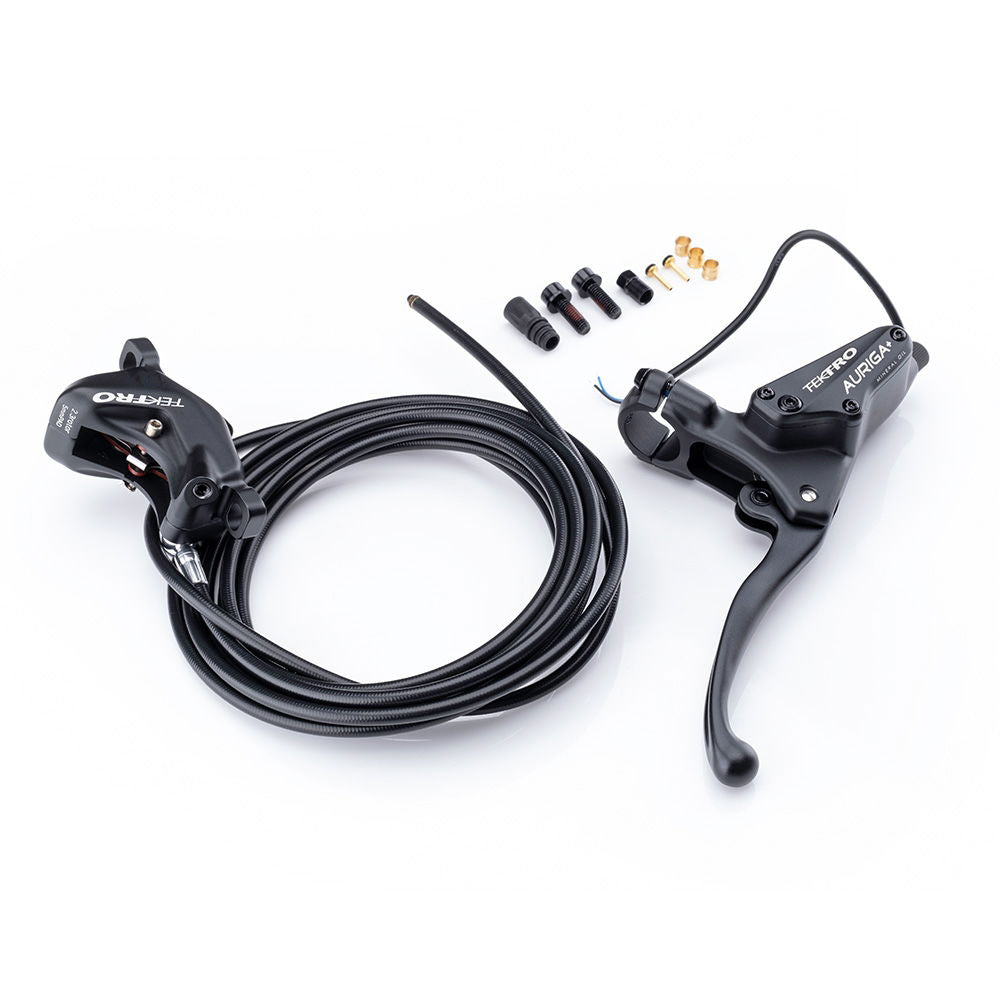

Tektro - E740 Auriga Plus Disc Brake RH

The Tektro HD-E740 Auriga Plus brake is a hydraulic brakeset for use with ebikes requiring an electrical cut-off to the motor when the brake lever is applied. The Tektro E740 comes pre-bled however the lever is not attached so that it can be fitted to internal routing and optimum hose length can be achieved. The cut off cable will need to be professionally attached to the existing cut off cable for the ebike motor system.

It features the EZ Plug in system which means the brake is pre-bled and pressure tested with a plugged Hose & Lever [not attached]. There is no need to bleed this brake.The hose can be simply routed and cut to length to suit your bike, then attached to the lever.

The full installation instructions are on Video and PDF

VIDEO HERE

PDF HERE
